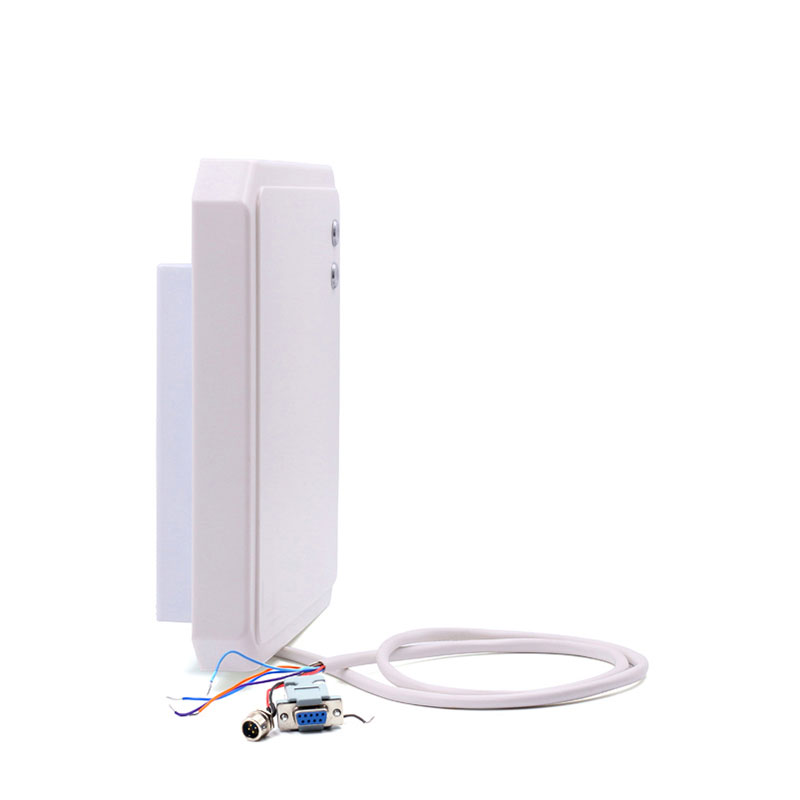

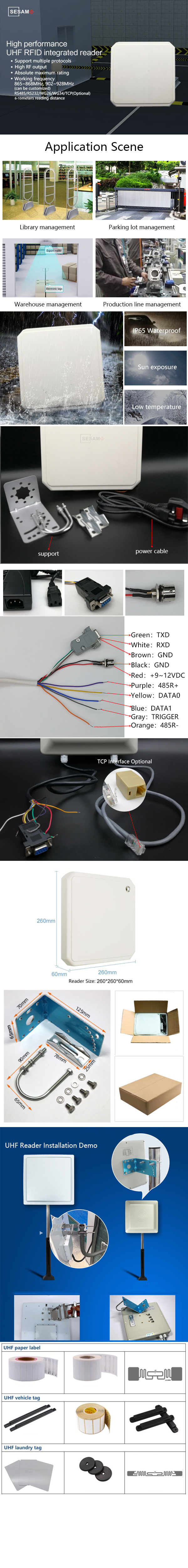

UHF RFID Reader 6-10 meters Long Range,

RS232/UART, RS485,

Wiegand26/34,Dimensions 257x257x40mm

Frequency Range 902-928mhz (FCC),865868mhz (CE)


Product Description

    SR-5109 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.



Features

1.      Self-intellectual property;

2.      Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

3.      865~868MHz, 902~928MHz frequency band(frequency customization optional);

4.      FHSS or Fix Frequency transmission;

5.      RF output power up to 30dbm(adjustable);

6.      9dbi antenna (vertical ,circular optional)with effect distance up to 10m~12m*;

7.      Support auto-running, interactive and trigger-activating work mode;

8.      Low power dissipation with single +9V DC power supply;

9.      Support RS232, RS485, WG26 interface;

* Effective distance depends on antenna, tag and environment.



Characteristics

1.      Absolute Maximum Rating


ITEM

SYMBOL

VALUE

UNIT

Power Supply

VCC

16

V

Operating Temp.

TOPR

-10~+55

Storage Temp.

TSTR

-20~+75




1.      Electrical and Mechanical Specification

Under TA25VCC+12V unless specified


ITEM

SYMBOL

MIN

TYP

MAX

UNIT

Power Supply

VCC

8

9

12

V

Current Dissipation

IC


350

650

mA

Frequency

FREQ

902


928

MHz

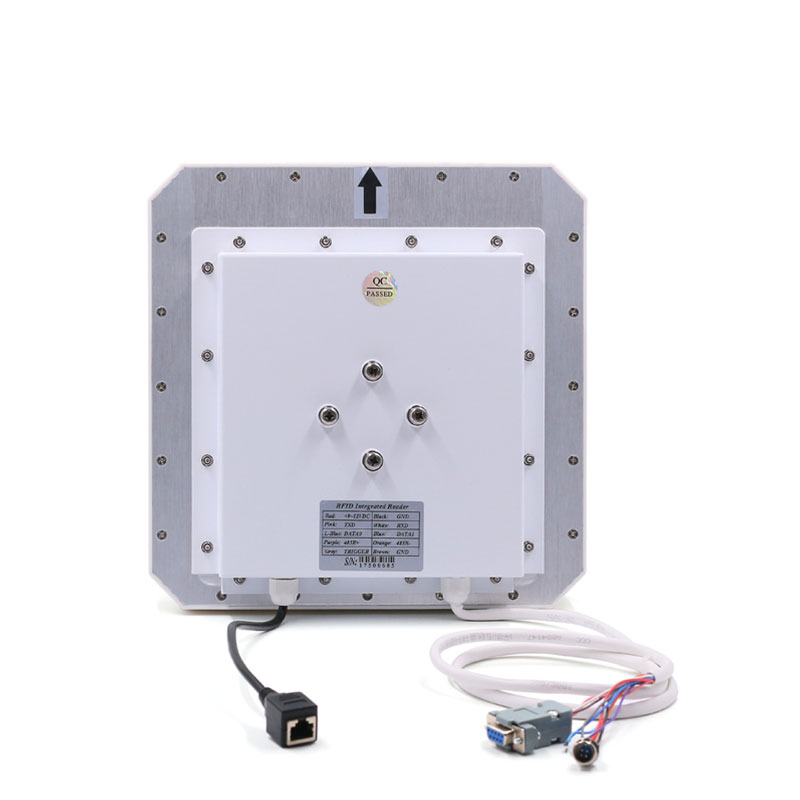

Interface




Item

Comment

Red

+9V

Black

GND

Green

Wiegand DATA0RS485 R+

White

Wiegand DATA1RS485 R-

Brown

RS232 RXD

Yellow

RS232 TXD

Grey

Trigger inputTTL level

Blue

GND
