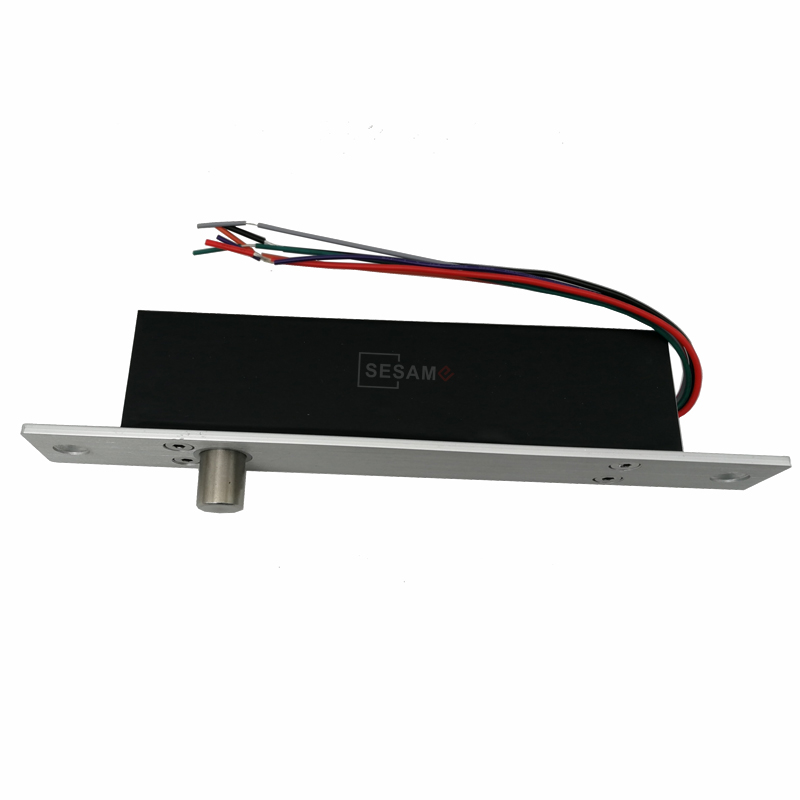

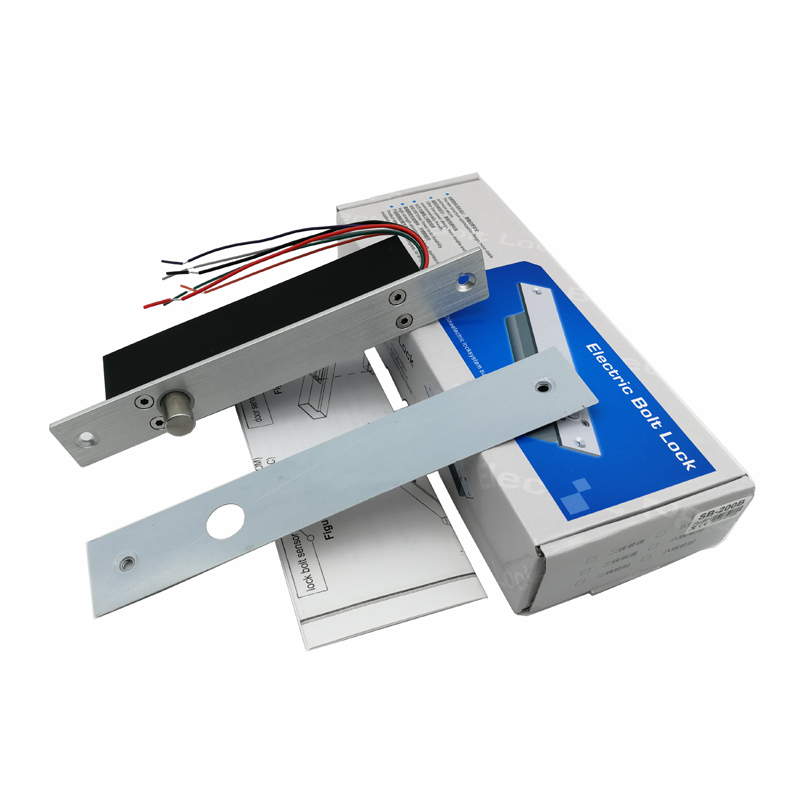

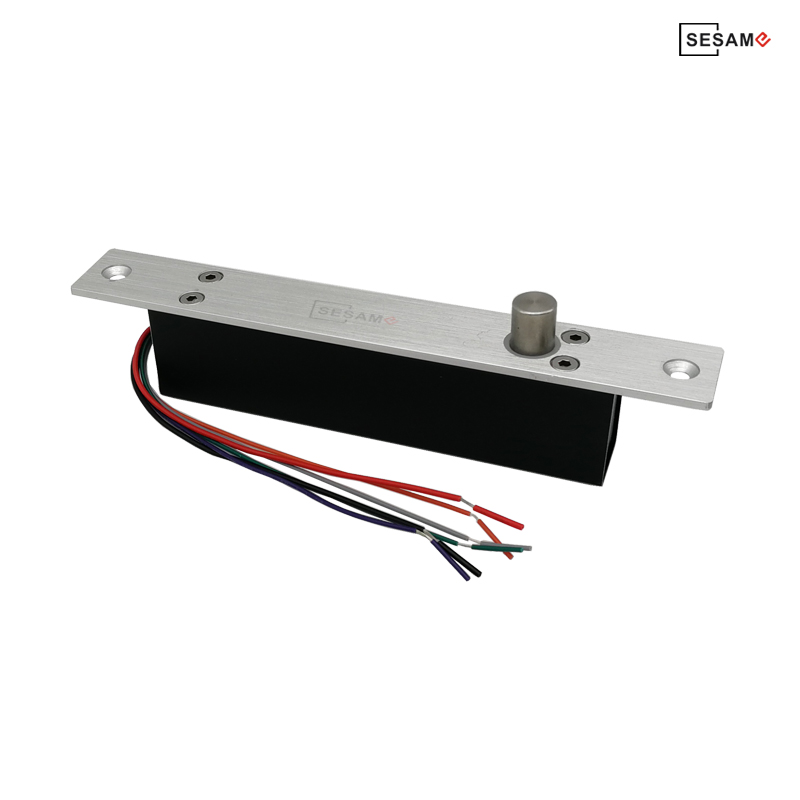

1. Professional electric bolt lock, Full solid stainlesssteel lock and lock body, durable

2. Ultra-low temperature design, less heat is safe andreliable

3. Optical control techniques to prevent mechanical failure

4. Ultra-low-power design, energy saving

5. The product is suitable for  Woodeng Door,Glass Door,Metal Door Fireproof Door .

6. Time delay setting: 0/3/6 sec.


◆Face Plate: 200Lx28WX38H(mm)

◆Strike: 200x28Wx3H(mm)

◆Bolt: 15 mm

◆Voltage: 12VDC

◆Start Current: 900mA

◆Standby Current: 120mA  Signal output

◆Time Delay: Yes, 0,3,6 sec

◆Open Wire: Yes

◆Solid Bolt: Polishing housing, 800Kg Holding Force

◆For: Woodeng Door,Glass Door,Metal Door Fireproof Door

◆Induction Distance: 8mm

◆ Special Designed: Tested to 500000 cycles

◆Face Place Material: Stainless Steel

◆Weight: 0.7 KG
