Enhanced stress structure design


100000 solenoid valve special design


Power to open the door or door adjustable power supply


Lock signal NO/NC/COM signal output

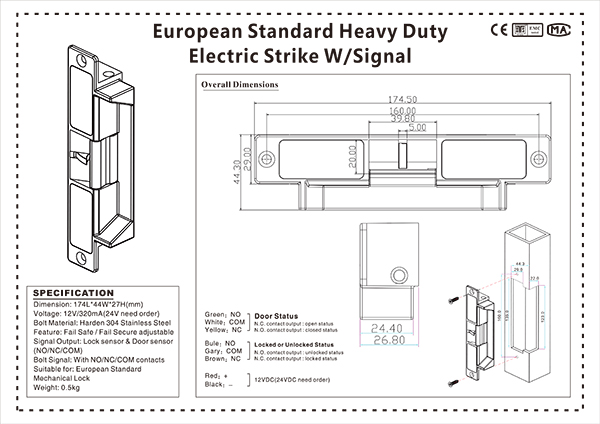

Lock Size174Lx44Wx27H(mm)

Strike Structure: 304 Stainless Steel

Holding Force: 1000kg

Voltage: DC12V (Need Order DC24V)

Current: 12V/320mA;24V/160mA

Signal Output: Lock Status OutputNO/NC/COM

Panel selection

Stainless steel, high strength aluminum alloy

Suitable For:  Wooden Door,Metal Door

Surface Temperature:  Within +20℃

Suitable Temperature: -10~+55℃(14-131F)

Operating Humidity: 0~90%(non-condensing)

Face plate Housing: Painted Steel

Lock tongue:  Surface by coating nickel

Function: Built-out MOV

Weight: 0.5kg
