Enhanced stress structure design
100000 solenoid valve special design
Power to open the door or door adjustable power supply
12/24VDC/VAC

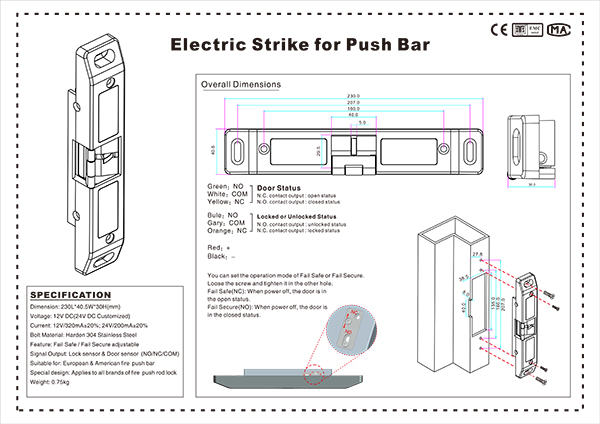

Lock Size: 230Lx40Wx30H(mm)
lock tongue structure 304 Stainless Steel
Holding Force： 1000kg
Voltage： DC12V or DC24V
Current： 12V/320mA;24V/160mA
Signal Output： Lock Status Output NO/NC/COM
special design： applies to all brands of fire push rod lock
Suitable For： supporting rod lock fire door
Surface Temperature：Within +20℃
Suitable Temperature： -10~+55℃(14-131F)
Operating Humidity： 0～90%(non-condensing)
Face plate Housing： High temperature paint
Lock tongue： Surface by coating nickel
The door open：90 degrees
Weight： 0.75kg
