1.Access controller easy to install, easy to use, stable performance,
2.Independent access control, can be directly implemented user passwords, cards and many other .
3.Supports a password to open the door, stand-alone card capacity up to 2000.
4.Wiegand Input&Output,Muti-function device,Support external wg26 card reader.
5.Exit button and doorbell input function.

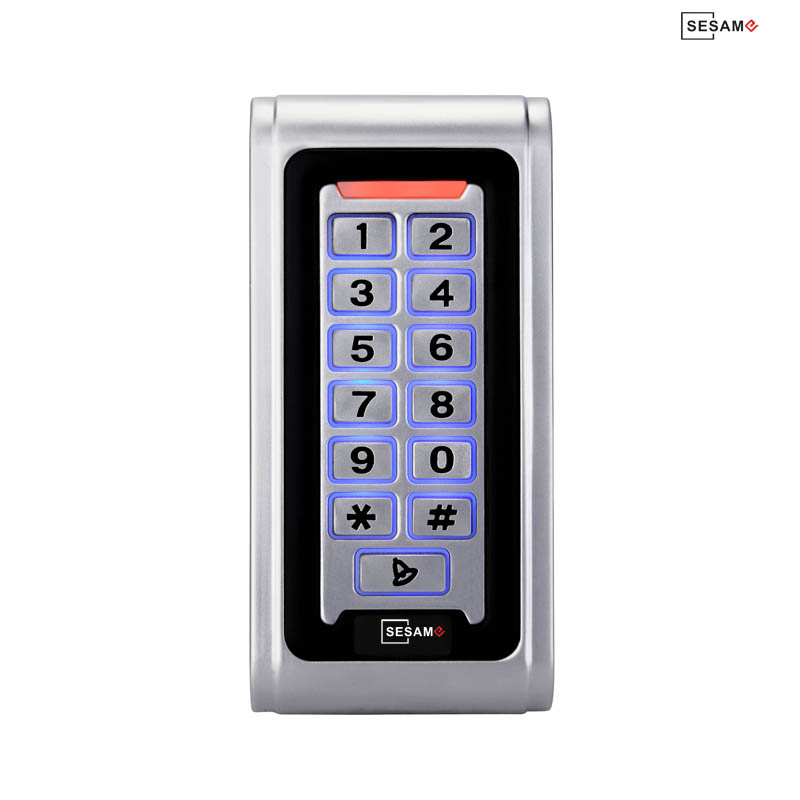

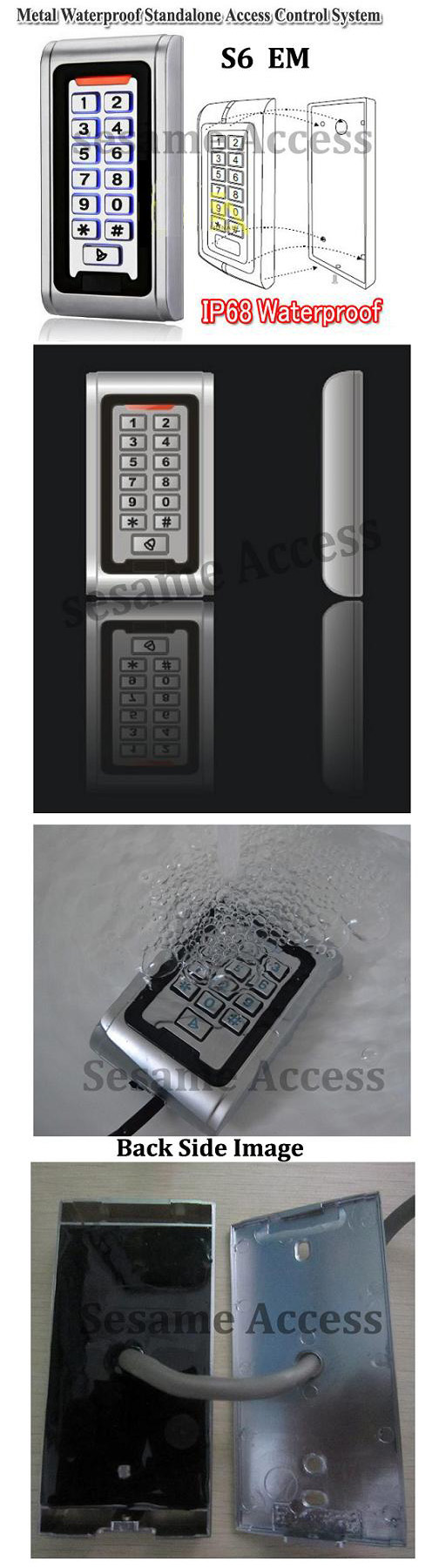

Waterproof, IP68 Stand Alone Access Controller with Em or IC 13.56Mhz Reader
lStrong Zinc Alloy Electroplated anti-vandal case
lFull programming from the keypad
l2000 uses, supports Card, PIN, Card + PIN
lCan be used as a stand alone keypad
lBacklight keys
lWiegand 26 output for connection to a controller
lAdjustable Door Output time, Alarm time, Door Open time
lVery low power consumption (30 mA)
lFast operating speed, <20ms with 2000 users
lLock output current short circuit protection
lEasy to install and program
lBuilt in light dependent resistor (LDR) for anti tamper
lBuilt in buzzer
lRed, Yellow and Green LEDS display the working status
Operating Voltage | 12V DC (9-28AC/DC) |
User Capacity | 2000 |
Card Reading Distance | 3-6 cm |
Active Current | ＜60mA |
Idle Current | 25±5 mA |
Lock Output Load | Max 20A |
Alarm Output Load | Max 20A |
Operating Temperature | -45～60℃ |
Operating Humidity | 10%- 90% RH |
Environment | Conforms to IP68 |
Adjustable Door Relay time | 0 -99 seconds |
Adjustable Alarm Time | 0- 3 minutes |
Wiegand Interface | Wiegand 26 bit |
Wiring Connections | Electric Lock, Exit Button,, External Alarm |

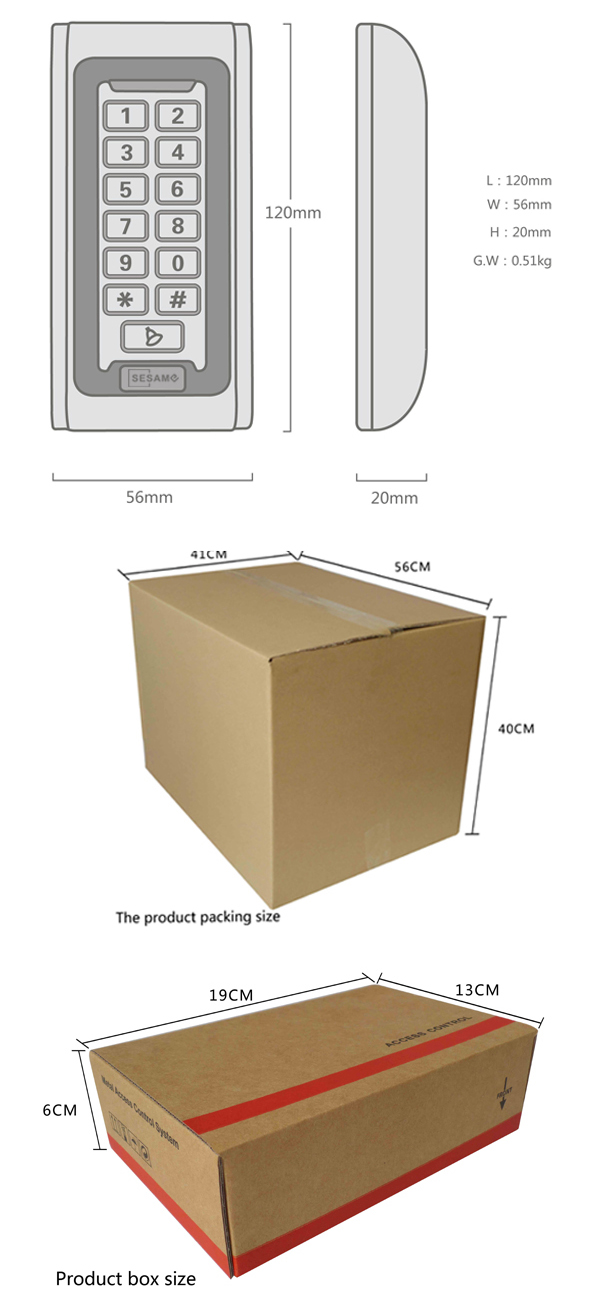

Dimensions | 120 x 56x 18 mm |
