.International standard dimension

.ABS fireproof material

.Easy installation suitable for ecurity doors, escape door, security systems

.Unique Can Resettable design,Can be used many times, more convenient management.

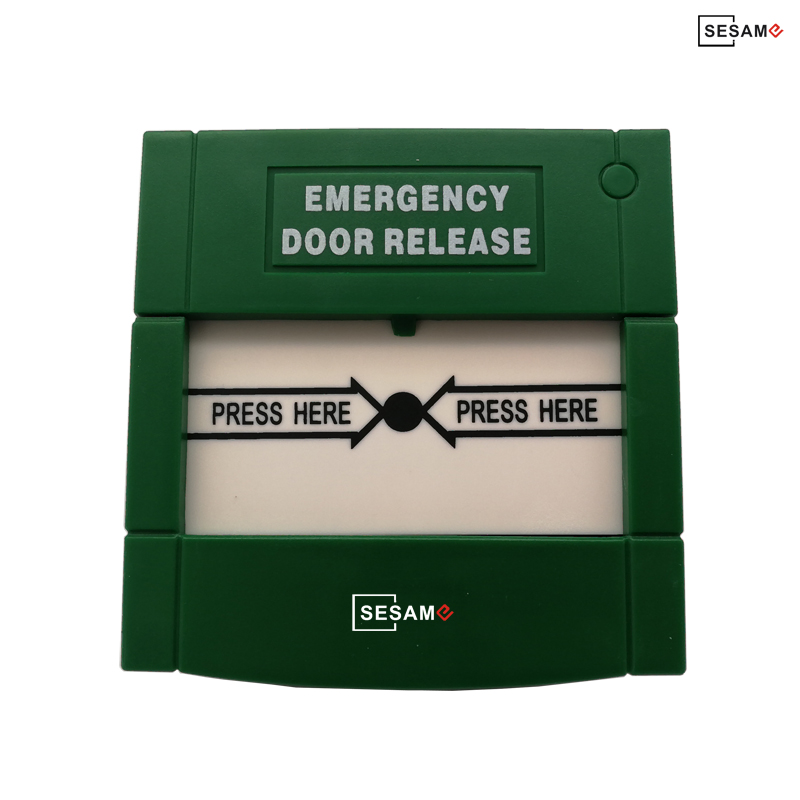

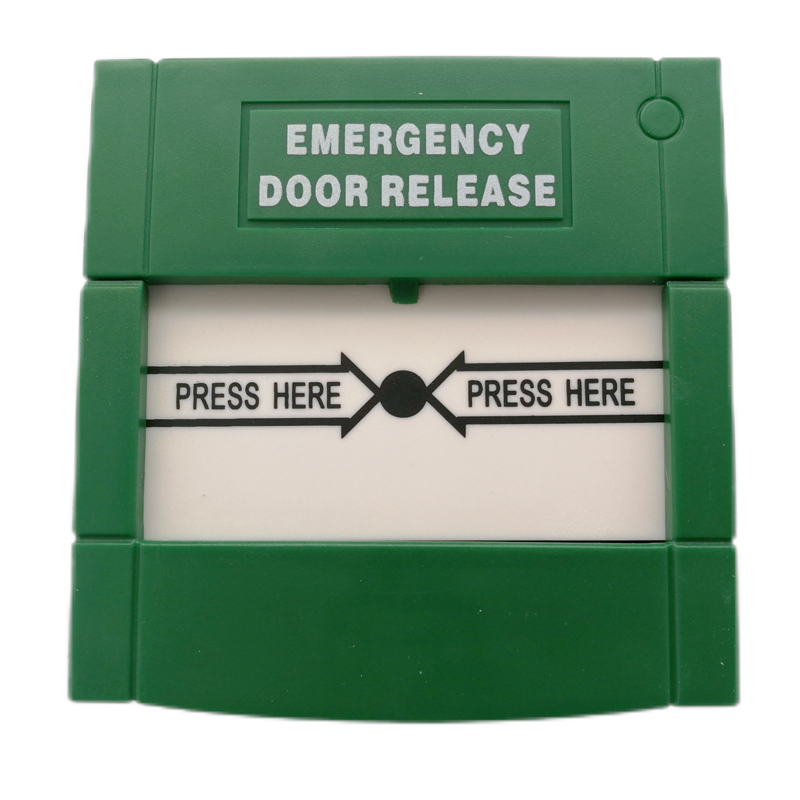

Resettable Emergency Door Release

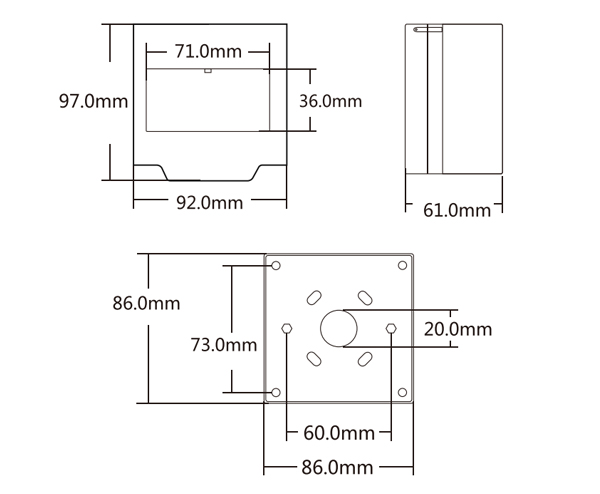

 Dimension: 86mm*86mm*50mm,

Output Contact: NO/NC/COM,  TWO Pole

 Max: 3A 36VDC  -10~+55℃

Weight: 0.15kg

without protect cover

Colors :Green / White / Red  /  Yellow
