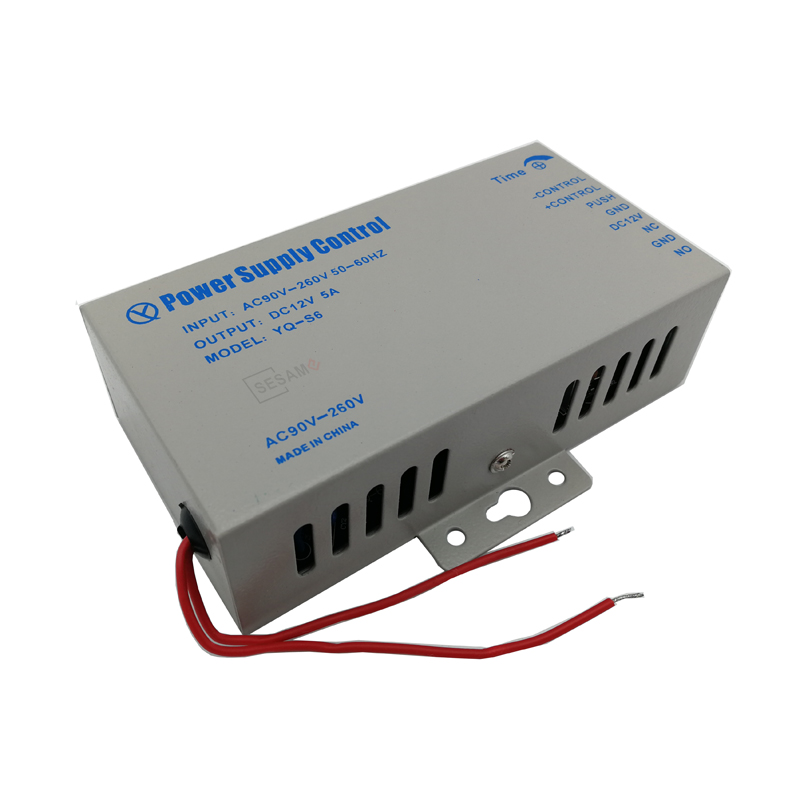

1.Power Supply It is practical, Simple interface, Design features such as stability, performance,
2.A power status indicator light, May direct that power failure,
3.Is a good cost performance of the module.
4.Multifunctional Access Control Output Contact,Can Directly Connect Electric lock, Switch, Door Bell, etc.
5.The Best Choice of Access Control System.(Magnet Lock, Access control, Exit Button)
◆Input:110V-240V /50Hz ,
◆Output:11-14 V DC 5A

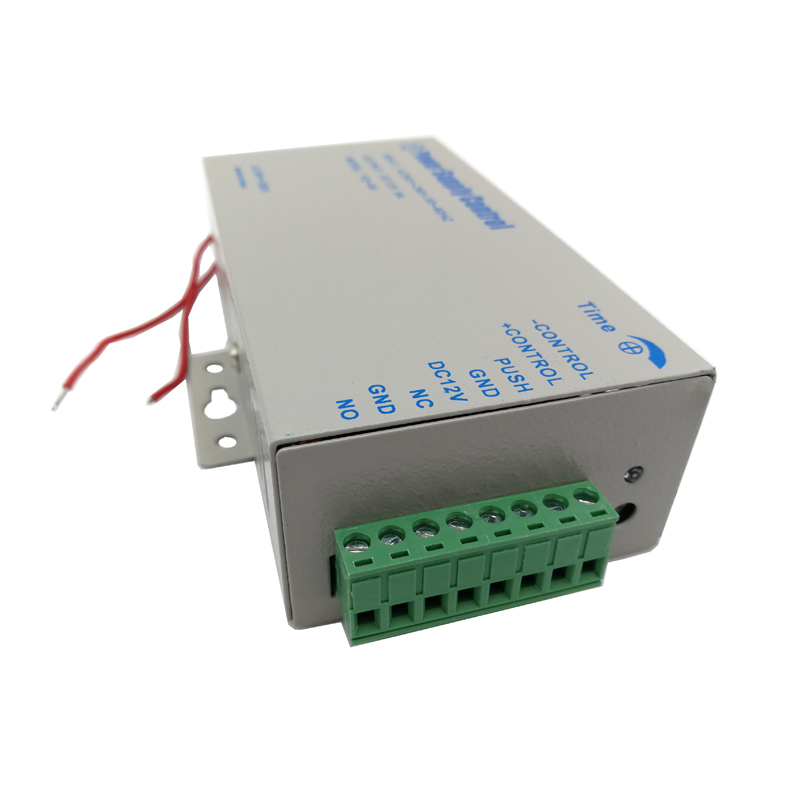

◆NC, NO, GND, +12V, PUSH, + Control-
◆Material Shell: Iron Material, Painted
◆Dimensions: 170*40*95(mm)
◆Gross Weight：0.4kg
