Holding 1000kg.
Special design,easy to adjust the distance of the Lock-tongue.
Designed for Metal Frame drill a hole,then install it directly.
Testing to 500000 cycles.
High-Temperature Painted,Durable and Beautiful Artical.
CE Certificate by European Union.

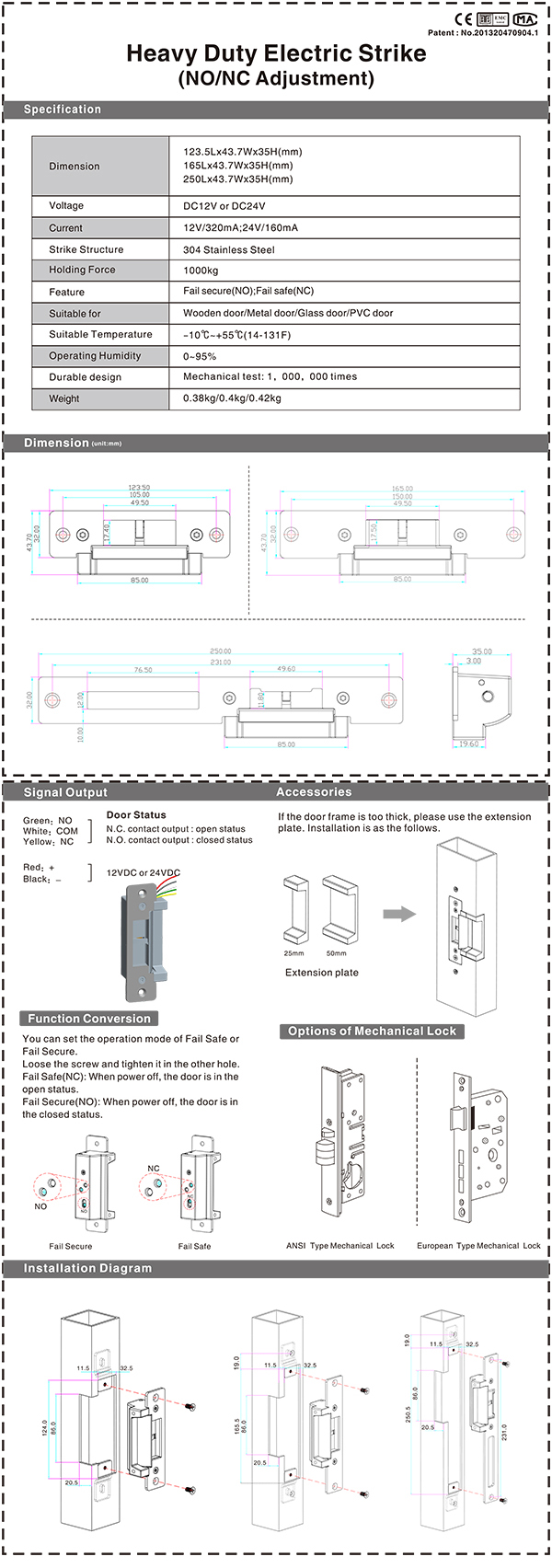

Lock Size:124Lx43.7Wx35H(mm)
Strike Structure: Stainless Steel
Holding Force: 1000kg
Voltage:DC12V (Need Order DC24V)
Current:12V/320mA;24V/160mA
Feature: Fail Secure(YS-138NO); Fail Safe(YS-138NC)
Suitable For: Wooden Door,Metal Door,PVC Door
Surface Temperature: Within +20℃
Suitable Temperature: -10~+55℃(14-131F)
Operating Humidity: 0～90%(non-condensing)
Face plate Housing: Painted Steel
Function: Built-out MOV
Weight: 0.455kg
