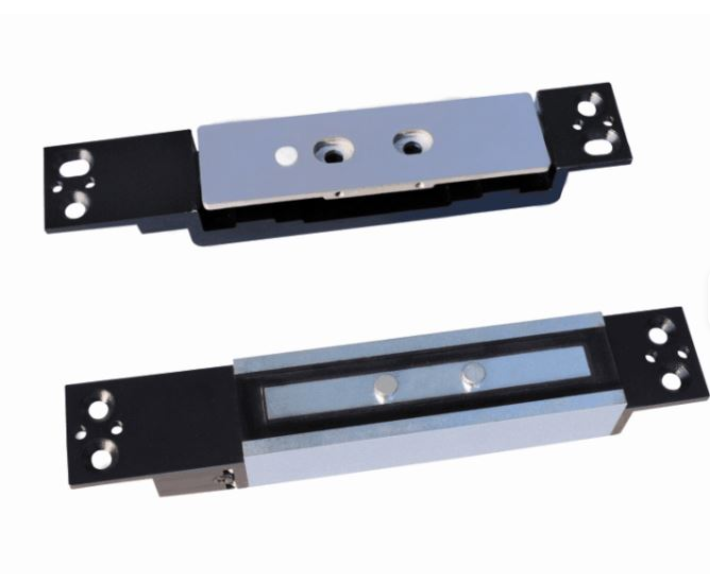

Shear Lock
DC12V stand by:400mA 1.2KG
Delay Time: 0/5/10/15sec.
Magnetic distance(max.):3mm
LED: Red locked; Green unlocked
holding force: :2600Lbs(1200kg)

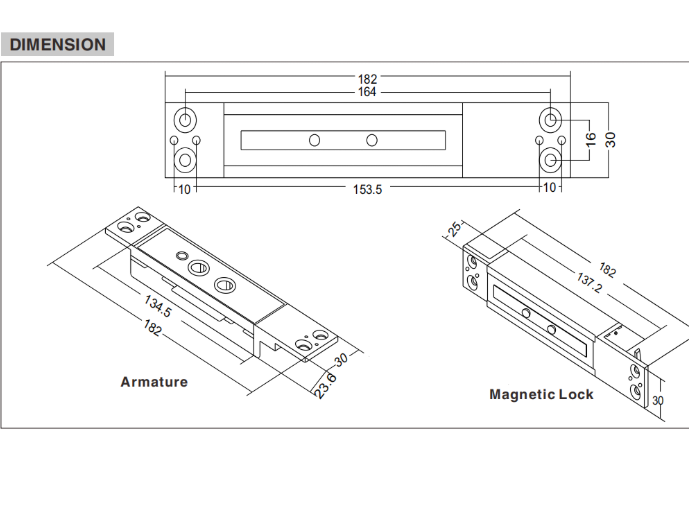

Lock Size:182L X 30W X 25D(mm)
Armature Plate: 182L X 30W X 23.6D(mm)
Door status sensor: NO/COM
Lock status sensor:NC/NO/COM
